aztec.ui.GroupBox
public class GroupBox from<Control>
Base
Window
Control
GroupBox
The GroupBox class provides a simple but effective grouping control. Its role is to be a parent to any number of other controls. A box is drawn around the entire group box with a title in the top left corner. GroupBox is very useful for breaking a window into multiple sections, and is also useful for grouping radio buttons together.

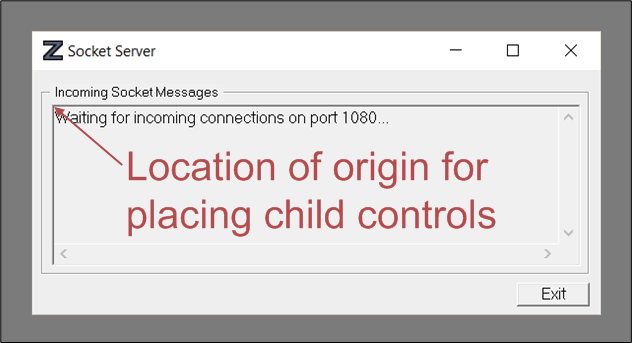

The "usable" portion of the GroupBox window, where new controls can be placed, is reduced in size to fit just inside the box. The Width() and Height() methods return the size of this "usable" area and the TotalWidth() and TotalHeight() methods return the overall size of the GroupBox, including the box.The following example shows an Editor control placed inside a GroupBox control. The Editor is placed at position 1,1 and the width and height of the Editor control is equal to the Width() and Height() of the GroupBox control.
The GroupBox control can have any type of control as a child.
GroupBox Methods
Derived Classes
None
See Also
Class Hierarchy, Frame, ChildFrame, Dialog, Control
GroupBox()
public method GroupBox(Window Parent, int XPos, int YPos, int Width, int Height, string TextString)
Parameters
Parent
Parent window for the group box control
XPos
One based X position of control relative to parent
YPos
One based Y position of control relative to parent
Width
Initial width of the control in pixels
Height
Initial height of the control in pixels
TextString
Initial string to be used in the edit box
Return Value
None
Description
Constructor for the GroupBox class. A box is drawn around the entire group box control, and the TextString is used as the title of the box.
GroupBox Class
